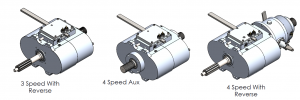

3 and 4 Speed Billet Transmission

Transmission Diagrams

(Click to View PDF, Exploded Views, and Parts Break Down) Shorty 3 speed with reverse or 4 speed w/o reverse 130 lbs. Geared to your specs! includes h gate shifter Reverse & neutral switches Absolutely all new parts and components! no junkyard pieces or parts in this transmission case dimension: 19.25” x 8.5” x 11” input… Read more »

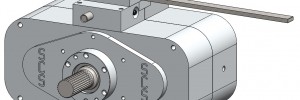

Super Duty T/C/S 3 Speed

3 Speed Transmission

(Click to View PDF, Exploded Views, and Parts Breakdown) with Reverse Mid Mount 2 1/16-32 Spline Output 1 ¾-27 Input Neutral and Reverser Switch included

Super Duty T/C/S 4 Speed

4 Speed Transmission with reverse

(Click to View PDF, Exploded Views, and Parts Break Down) with Reverse Mid Mount 2 1/16-32 Spline Output 1 ¾-27 Input Neutral and Reverser Switch included

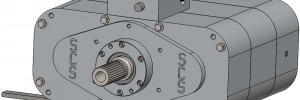

Super Duty T/C/S 6 Speed

6 Speed Transmission

With Reverse Mid Mount 3 Speed with 2 Speed Hi & Lo Gearbox, 2 1/16-32 Spline Output 1 ¾-27 Spline Input Neutral and Reverse Switch 25 9/16” OAL

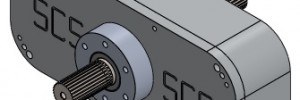

5.333 Take Out Box

Take Out Box with Double Bearing Nose

(Click to View PDF, Exploded Views, and Parts Break Down) With Double Bearing Nose

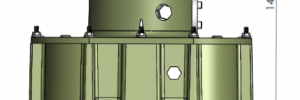

Single Speed Twin Countershaft

Twin Countershaft - Single Speed

(Click to View PDF, Exploded Views and Parts Break Down) Bell Housing Mount Or Mid Mount 1 ¾-27 Input and Output

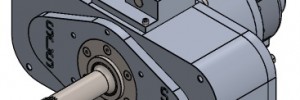

2 Speed Super Duty T/C/S

2 Speed Super Duty T/C/S

(Click to View PDF, Exploded Views, and Parts Breakdown) With Reverse Mid Mount Or Bell Housing Mount With 10 Series Reverser

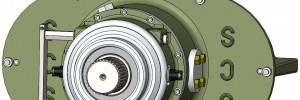

2 Speed Twin Counter Shaft

2 Speed Gearbox with reverse

(Click to View PDF, Exploded Views, and Parts Break Down) With Reverse 2 1/16-32 Spline Output OR 1 ¾-10 Output Neutral and Reverser Switch Clutch Brake Optional Input Length, Spline, and Pilot ID per customer 1 3/8-10 Spline in Stock

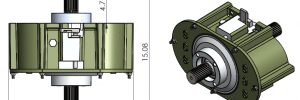

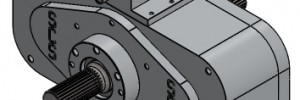

2 Speed Aux

2 Speed Aux Transmission

(Click to View PDF, Exploded Views, and Parts Break Down)
