Transmissions

Transmissions

20 Series

With Reverse

1 9/16-24 Output

Neutral and Reverse Switch Included

Input Length per Customer,

1 3/8-10 Spline in Stock

Pilot ID Per Customer


30 Series  30 Series Transmission

(Click to View PDF, Exploded Views, and Parts Break Down)

Bellhousing or independent mounting

Uses heavy-duty 10 Series reverser

Any size input shaft to customer’s specifications, removable

Weighs only 80 pounds

Compact, only 16-1/4 inches long

1-1/8″ wide, super strength change gears

16 quick-change gear ratios from 1.529:1 underdrive to 1:1.318 overdrive

304 total gear ratios from 2.34:1 underdrive to 1:2.015 overdrive

Transmission brake optional

Available without reverse

Matching driveline components available

With 1 ¾-10 Output or 2 1/16-32 Spline Output


Single Speed with Reverse

Bellhousing or independent mounting

Any size input shaft to customer’s specification

Standard output 2/16-32 or optional 1 3/4-10 with bearing support for mud racing

Without Reverser Standard output is 1 3/4-27

Weighs 70 pounds with Reverser

Compact, Overall length only 15 inches with Reverser, without Reverser 8 3/4 inches

18 quick change gear ratios from 1.777:1 underdrive to 1:1.318 overdrive

414 total gear ratios from 3.16:1 underdrive to 1:737 overdrive

Reverse & Natural switches built into Reverser

Transmission brake optional

Matching driveline components available


Mini Rod Iso

Twin Counter Shaft Mini With Reverser






Twin Counter Shaft Mini with Lightweight Reverser

(Click to View Exploded Views and Part Break Down)Single Light iso

Designed for the Weight Conscious Pullers

Weight 54lbs

Gear Ratios Available from 3.177 Underdrive to 2.34 Overdrive

Input Shafts built to customers specs

1 9/16-24 Output

Neutral switch & Reverse switch included

Input Length per customer, 1 3/8-10 Spline, Pilot ID per customer


2 Speed Aux Back

2 Speed Aux

(Click to View PDF, Exploded Views, and Parts Break Down)






2 Speed Twin Counter Shaft2 Speed with reverse Back

(Click to View PDF, Exploded Views, and Parts Break Down)

With Reverse

2 1/16-32 Spline Output

OR 1 ¾-10 Output

Neutral and Reverser Switch

Clutch Brake Optional

Input Length, Spline, and Pilot ID per customer

1 3/8-10 Spline in Stock


2 Speed Super Duty T/C/SSuper Duty 2 Speed

(Click to View PDF, Exploded Views, and Parts Breakdown)

With Reverse

Mid Mount

Or Bell Housing Mount

With 10 Series Reverser

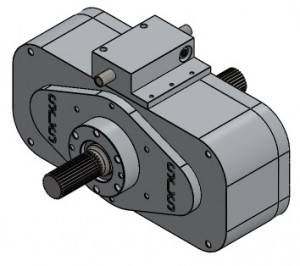

2 Speed Reduction Box2 Speed Reduction Box

(Click to View PDF, Exploded Views, and Parts Breakdown)






3 and 4 Speed Billet Transmission3 Speed with Reverse

(Click to View PDF, Exploded Views, and Parts Break Down)

Shorty 3 speed with reverse or 4 speed w/o reverse 130 lbs.

Geared to your specs!

includes h gate shifter

Reverse & neutral switches

Absolutely all new parts and components!

no junkyard pieces or parts in this transmission

case dimension: 19.25” x 8.5” x 11”

input to output 16”


Super Duty T/C/S 3 Speed3 Speed Transmission

(Click to View PDF, Exploded Views, and Parts Breakdown)

with Reverse

Mid Mount

2 1/16-32 Spline Output

1 ¾-27 Input

Neutral and Reverser Switch included


Super Duty T/C/S 4 Speed 4 Speed Transmission with reverse

(Click to View PDF, Exploded Views, and Parts Break Down)

with Reverse

Mid Mount

2 1/16-32 Spline Output

1 ¾-27 Input

Neutral and Reverser Switch included


Super Duty T/C/S 6 Speed 6 Speed Transmission

With Reverse

Mid Mount

3 Speed with 2 Speed Hi & Lo Gearbox,

2 1/16-32 Spline Output

1 ¾-27 Spline Input

Neutral and Reverse Switch

25 9/16” OAL

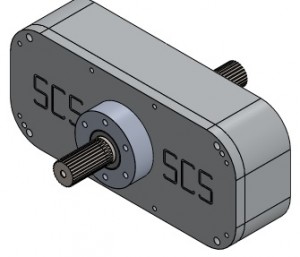

5.333 Take Out BoxTake Out Box

(Click to View PDF, Exploded Views, and Parts Break Down)

With Double Bearing Nose






Single Speed Twin Countershaft

(Click to View PDF, Exploded Views and Parts Break Down)

Bell Housing Mount

Or Mid Mount

1 ¾-27 Input and Output
